Damage Control Solutions

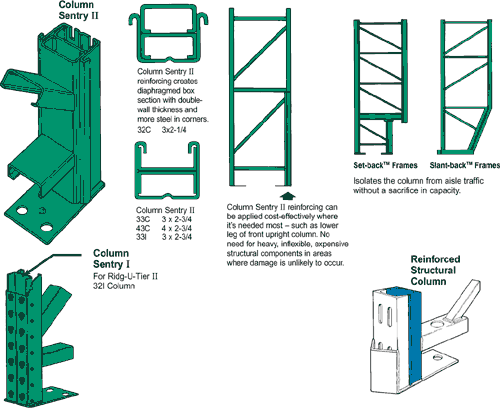

Ridg-U-Rak has developed and tested for effectiveness, a variety of rack damage control designs. Here are four options:
- Column Sentry™ II Reinforcing for standard Ridg-U-Rak
high performance design.
- Impact Channel Reinforcing for Ridg-U-Tier™ II rack systems.
- Double Column for structural rack systems.
- Slant-Bak or Set-Bak frames
isolate the column from aisle traffic without a sacrifice
in capacity. These are more costly choices than the three
shown above.
The Ultimate Column Reinforcement
Ridg-U-Rak's Column Sentry™ II reinforcing is a double-thick,
double-strength diaphragmed box section that provides exceptional
resistance to impact damage of upright rack storage columns.
Column Sentry™ II reinforcing helps guard against rack
failure, collapse, and local buckling; at the same time, it
increases column load carrying strength.
And that's not all. Column Sentry™ II reinforcing
is compact, thereby saving critical aisle space. Requires no
more space than our standard column, and it need be applied
only in critical areas subject to impact damage.
No other reinforcing method offers the protection,
strength, and economy of Column Sentry™ II.
|
