RAMGuard Column Protectors

RAMGuard™ provides superior rack column protection with its patented Rubber Armored Metal design. Molded of energy-absorbing rubber with a "U-shaped" steel insert and force-distributing rubber voids, RAMGuard absorbs significantly more energy during impact than most column protection devices offered today.

RAMGUARD™ ADVANTAGES

  • Protects rack structures from frontal, angled, and side impacts
  • Significantly lowers impact damage to pallet rack columns
  • Requires no hardware or straps to retain the guard on the column
  • Endures many impacts with no loss of performance
  • Significantly outperforms most plastic guards commonly used today

Available in 12-inch heights, RAMGuard snaps onto rolled or structural steel columns 3-inches wide and
up to 3 inches deep.

The new 5-inch RAMGuards are ideal for pallet rack storage with the bottom pallet position off the floor.

  • Protect Racks from Outrigger Damage
  • Very Narrow Aisle Applications
  • Trucks with Outriggers
  • Rack with Bottom Pallet off the Ground

To see more information on column protection and submit and RFQ, visit the RAMGuard Column Protection website.

RamGuard 5 Inch
5" RamGuard - Protect against Outrigger Damage

  • Compatible with:

    Roll Formed

    • Teardrop
    • Slotted
    • Bolted

    Structural

    • Bolted
    • Slotted

RamGuard 5 Inch - Velcro 1
5" RamGuard with One (1) High Visibility Velcro Strap - Protect against Outrigger Damage

  • Compatible with:

    Roll Formed

    • Teardrop
    • Slotted
    • Bolted

    Structural

    • Bolted
    • Slotted

RamGuard
Rubber steel reinforced column guard <a href="https://www.theramguard.com/" target="_blank"><u>RamGuard Details</u></a>

  • Compatible with:

    Roll Formed

    • Teardrop
    • Slotted
    • Bolted

    Structural

    • Bolted
    • Slotted

RAMGuard Cutaway View
Animated view of the RAMGuard

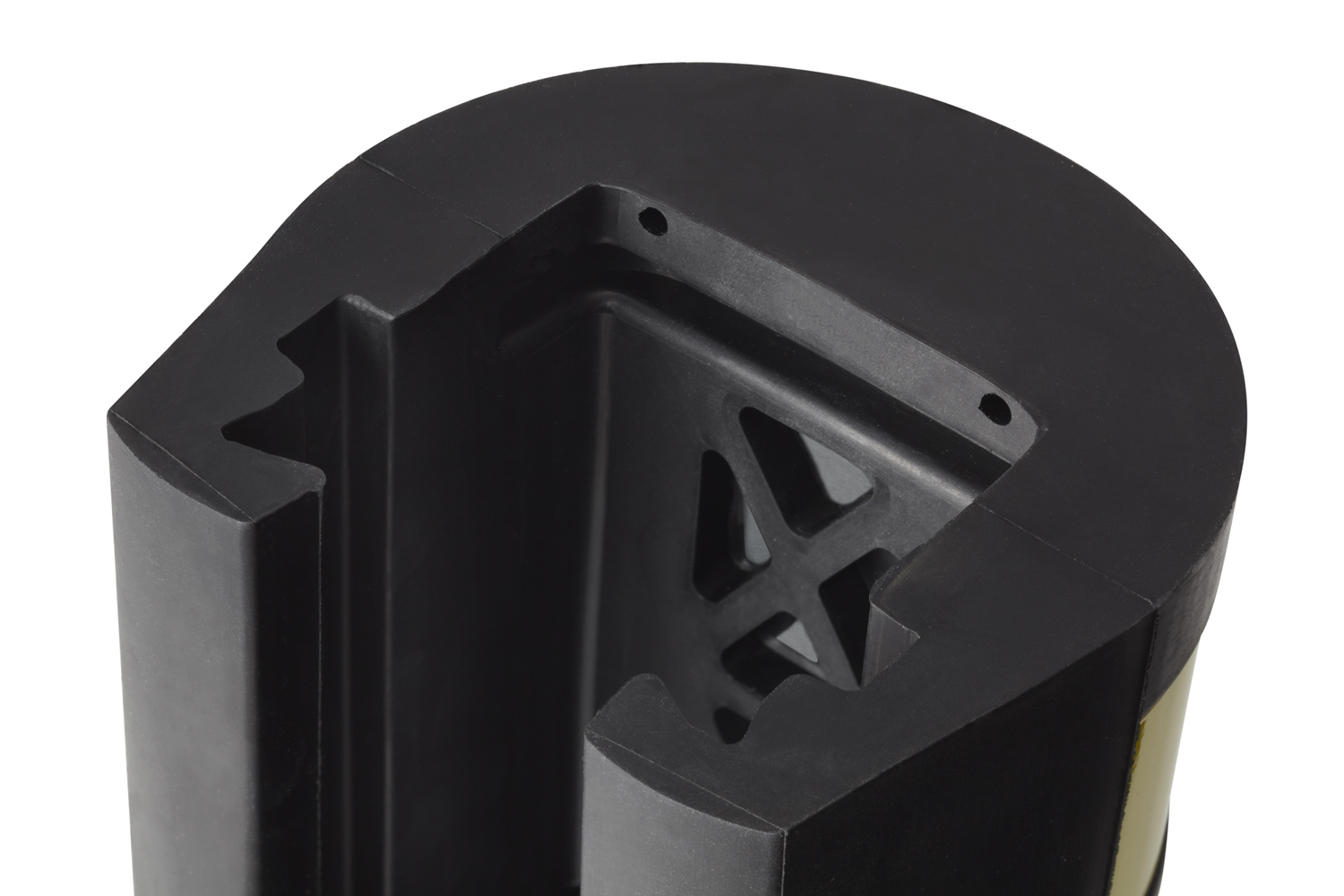

RamGuard
Air voids and metal plate reinforcement

RamGuard Rearview
Snap on design offering great impact resistance

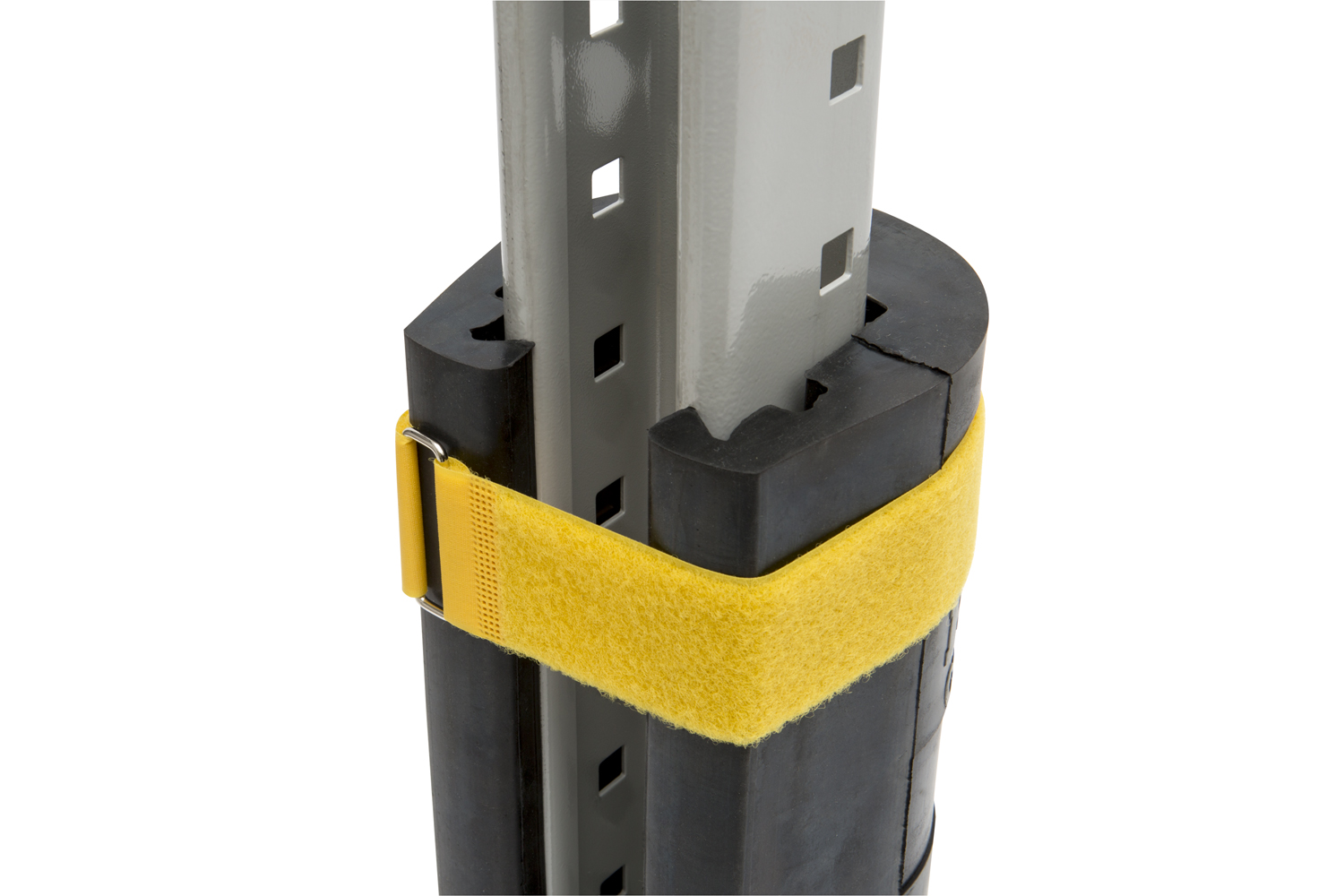

RamGuard - Velcro Strap
Optional High Visibility Velcro Strap (1, 2, or 3 Per Guard)

  • Compatible with:

    Roll Formed

    • Teardrop
    • Slotted
    • Bolted

    Structural

    • Bolted
    • Slotted

RamGuard - Velcro 1
RamGuard with One (1) High Visibility Velcro Strap

  • Compatible with:

    Roll Formed

    • Teardrop
    • Slotted
    • Bolted

    Structural

    • Bolted
    • Slotted

RamGuard - Velcro 2
RamGuard with Two (2) High Visibility Velcro Straps

  • Compatible with:

    Roll Formed

    • Teardrop
    • Slotted
    • Bolted

    Structural

    • Bolted
    • Slotted

RamGuard - Velcro 3
RamGuard with Three (3) High Visibility Velcro Straps

  • Compatible with:

    Roll Formed

    • Teardrop
    • Slotted
    • Bolted

    Structural

    • Bolted
    • Slotted

RamGuard - Velcro (Back)
RamGuard High Visibility Velcro Strap Rear View
