Structural Pallet Rack Systems provide 100% accessibility to all stored items and are comparable in use and capacity to Ridg-U-Rak's other 100% selective pallet rack systems - Slotted and Tear Drop. Structural storage racks are fabricated using hot-rolled structural steel channels for uprights and beams. A heavy-duty lower horizontal brace and welded foot protector are standard on structural pallet rack systems. These 100% selective pallet racks are covered with long-lasting powder coating and baked enamel finishes providing durability even under the most demanding conditions.
Structural configurations are also used in Drive-In High Density Pallet Rack systems. Installation is simple and safe with Ridg-U-Rak.
Made from solid structural steel channel with either bolted or slotted beam-to-column connections.
Bolted or Slotted
Beam-to-column bolted pallet rack systems provide a strong and rigid structure that is adjustable on 2-inch increments. Beam-to-column slotted connections provide an easy-to-install and reconfigure system that is adjustable in 4-inch increments.
| Column Sizes: | 3-inch & 4-inch channels |
|---|---|
| Beam Sizes: | 3-inch and greater |
| Connection Style | Bolted or slotted connections |
Features:
Applications & Options:
Structural Frames & Beams

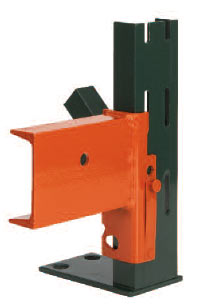

Slotted Connections
Upright frames

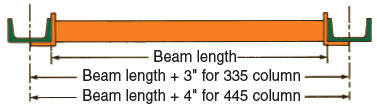

Beam Capacities - Slotted Connection
| 48" | 10,880 | 11,160 | 12,290 | 12,290 | 18,510 | 18,910 | ||||
| 54" | 9,350 | 9,920 | 10,640 | 10,930 | 15,860 | 16,810 | ||||
| 72" | 6,280 | 7,210 | 7,330 | 7,930 | 10,550 | 12,610 | 18,810 | |||
| 84" | 4,970 | 5,300 | 5,830 | 5,830 | 8,060 | 10,810 | 14,840 | 18,960 | ||
| 92" | 4,140 | 4,420 | 4,860 | 4,860 | 6,650 | 9,870 | 12,330 | 17,310 | ||
| 96" | 3,800 | 4,060 | 4,460 | 4,460 | 6,080 | 9,320 | 11,280 | 16,590 | ||
| 102" | 3,360 | 3,600 | 3,950 | 3,950 | 5,350 | 8,260 | 9,940 | 15,620 | 14,130 | |
| 108" | 2,990 | 3,210 | 3,530 | 3,530 | 4,750 | 7,370 | 8,830 | 14,750 | 12,520 | |
| 120" | 2,420 | 2,600 | 2,860 | 2,860 | 3,820 | 5,970 | 7,100 | 12,880 | 10,030 | |
| 132" | 2,000 | 2,150 | 2,360 | 2,360 | 3,140 | 4,930 | 5,840 | 10,640 | 8,220 | 17,640 |
| 144" | 1,670 | 1,810 | 1,990 | 1,990 | 2,630 | 4,150 | 4,880 | 8,940 | 6,870 | 15,640 |
| 156" | 1,430 | 1,540 | 1,690 | 1,690 | 2,230 | 3,530 | 4,150 | 7,620 | 5,820 | 13,330 |
| 180" | 1,070 | 1,160 | 1,270 | 1,270 | 1,670 | 2,660 | 3,100 | 5,730 | 4,340 | 10,010 |
Note: Beams must be secured by beam locks against accidental upward forces. All capacities are per pair of beams based on uniformly distributed loads. Capacities are based on current RMI specifications.
Frame capacity chart
| Vertical Beam Spacing | SSF-335 |
|---|---|
| 36" | 34,200 |
| 48" | 33,300 |
| 60" | 30,000 |
| 72" | 24,000 |
| 84" | 18,400 |
| 96" | 14,200 |
| 108" | 11,300 |
WARNING: Due to the system-based design approach of the current RMI Specification, the use of static load capacities are no longer appropriate. Load ratings can only be provided through a system analysis which accounts for configuration of the system, static loading, seismic parameters, stability requirements and the interaction characteristics of the various system components.These capacity tables should only be used as a "starting point"
