Teardrop Pallet Rack
Tear Drop Pallet Rack
Patented Design, Superior Value
Ease of assembly and rack adjustability are the design advantages that boltless Tear Drop Pallet Rack Systems offer. 100% selective Tear Drop pallet rack systems allow access to every pallet. This storage rack design is economical, efficient and adaptable in application, due to quick assembly and adjustment without tools, and an affordable purchase price.
Compatible with virtually all existing "teardrop" style rack connections - new and old.

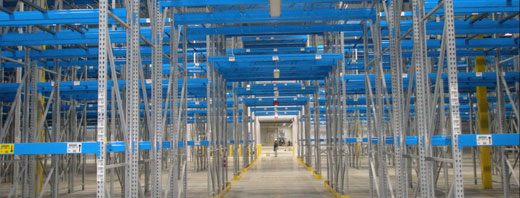

Industry Compatible Tear Drop Style Pallet Rack

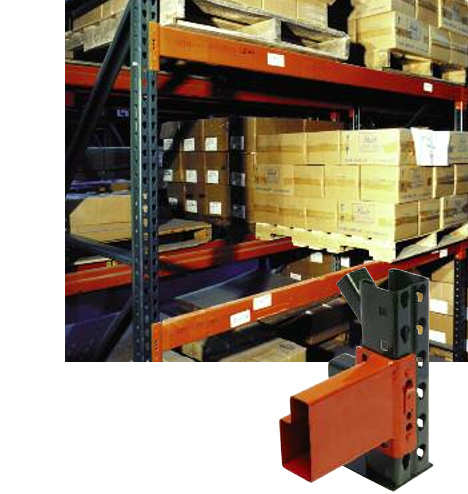

Ridg-U-Rak's Tear Drop beam-to-column connection is designed to be compatible with other widely available Tear Drop pallet rack systems and also can work side-by-side with slotted and structural pallet rack designs. Heavier bracing and better impact resistance are reasons to step up to Ridg-U-Rak reliability when expanding your current pallet rack system. Ridg-U-Rak offers a Rack Repair Kit that allows for repair without unloading the rack, saving cost and time.
Our Ridg-U-Tier II Tear Drop pallet rack system provides an enhanced, rigid, automatic lock for improved safety. Ridg-U-Rak's patented Springlock locking mechanism is an integral element of the rack's beam, replacing the "pinch-pin" locking system. The Springlock assembly provides positive beam-to-column engagement, improving installation speed and safety.
A center reinforcing rib is unique to Ridg-U-Rak's Tear Drop pallet rack configurations, providing heavier bracing for added strength and rigidity, and larger columns for better impact resistance. Frames are available in any height or depth and numerous column configurations providing great flexibility in pallet rack system design.
| Column Sizes: | 3x1-5/8, 3x2-1/4, 3x3 and 4x3-inch |
|---|---|
| Beam Sizes: | 2-2 thru 6-2 inch step beams |
| Connection Style | Tear Drop and Pin with automatic lock |
Features:
Applications & Options:
Tear Drop Frames
easy assembly
Teardrop systems offer easy assembly with 2" vertical beam adjustments. No tools are required. The teardrop beam-to-column connection is designed to be compatible with other widely available teardrop systems.
Frame Capacities
| Vertical Beam |
 |
 |
 |
 |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Spacing | UF-S31I | UF-S32I | UF-S33I | UF-R33I | UF-M33I | UF-Y33I | UF-H33I | UF-M43I | UF-H43I |
| 36" | Static Load Capacities for component items are no longer published. | ||||||||
| 42" | |||||||||
| 48" | |||||||||
| 54" | |||||||||
| 60" | |||||||||
| 72" | |||||||||
| 84" | |||||||||
| 96" | |||||||||
| 108" | |||||||||
Consult with factory for vertical beam-to-beam spacings greater than 108"
* Due to the system-based design approach of the current RMI Specification, the use of static load capacities are no longer appropriate. Load ratings can only be provided though a system analysis which accounts for configuration of the system, static loading, seismic parameters, stability requirements and the interaction characteristics of the various system components.
If your system was provided to you by Ridg-U-Rak, please contact your regional sales manager for the appropriate capacity rating. If you purchased a Ridg-U-Rak system from a source other than Ridg-U-Rak, it is recommended that you work with an experienced rack design engineer to obtain the appropriate capacity rating.
Tear Drop Beams
easy assembly
Interchangeable teardrop beams, as with slotted beams, are available in many profiles, in virtually any length, with capacities to 18,000 lbs. per pair. You can tie into many existing systems both old and new. Beams have a safety factor of 1.67 based on minimum yield of steel. All beam capacities are calculated based on the requirements of the current RMI specification.
Our teardrop pallet system provides a robust, patented, automatic lock for improved safety. The Springlock assembly provides positive beam-to-column engagement, improving installation speed and safety.
All capacities are based on uniformly distributed loads on a pair of beams. Other loading conditions can greatly reduce the carrying capacity of a beam. For unusual loading requirements, call your local Ridg-U-Rak distributor.
Beam Capacities
| Beam Profile |
Beam Lengths | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 48" | 60" | 72" | 84" | 92" | 96" | 102" | 108" | 120" | 144" | 156" | |
| 250 S | 5,700 | 4,530 | 3,130 | 2,300 | 1,910 | 1,750 | 1,550 | 1,380 | 1,120 | 770 | 660 |
| 300 S | 7,500 | 5,980 | 4,820 | 3,530 | 2,940 | 2,690 | 2,380 | 2,120 | 1,720 | 1,190 | 1,010 |
| 355 S | 9,760 | 7,770 | 6,460 | 5,330 | 4,440 | 4,070 | 3,600 | 3,210 | 2,590 | 1,790 | 1,520 |
| 410 L | 10,810 | 8,620 | 7,150 | 6,110 | 5,570 | 5,200 | 4,600 | 4,100 | 3,310 | 2,290 | 1,940 |
| 410 S | 12,000 | 9,780 | 8,120 | 6,930 | 6,320 | 5,830 | 5,160 | 4,600 | 3,710 | 2,570 | 2,180 |
| 465 S | 12,000 | 11,970 | 9,940 | 8,490 | 7,740 | 7,410 | 6,960 | 6,320 | 5,110 | 3,530 | 3,000 |
| 500 S | 12,000 | 12,000 | 11,170 | 9,540 | 8,700 | 8,330 | 7,830 | 7,380 | 6,140 | 4,250 | 3,610 |
| 550 S | 18,000 | 18,000 | 18,000 | 11,150 | 10,160 | 9,720 | 9,140 | 8,620 | 7,740 | 5,420 | 4,610 |
| 600 S | 18,000 | 18,000 | 18,000 | 12,850 | 11,710 | 11,210 | 10,540 | 9,940 | 8,920 | 6,790 | 5,770 |
| 650 S | 18,000 | 18,000 | 18,000 | 14,660 | 13,360 | 12,790 | 12,020 | 11,340 | 10,180 | 8,360 | 7,110 |
| 650 R | 18,000 | 18,000 | 18,000 | 18,000 | 15,160 | 14,520 | 13,640 | 12,870 | 11,550 | 9,370 | 7,970 |
• Capacities are based on uniformly distributed loads per pair of beams.
• Capacities listed are for non-seismic conditions. For seismic conditions consult with Ridg-U-Rak sales or engineering.

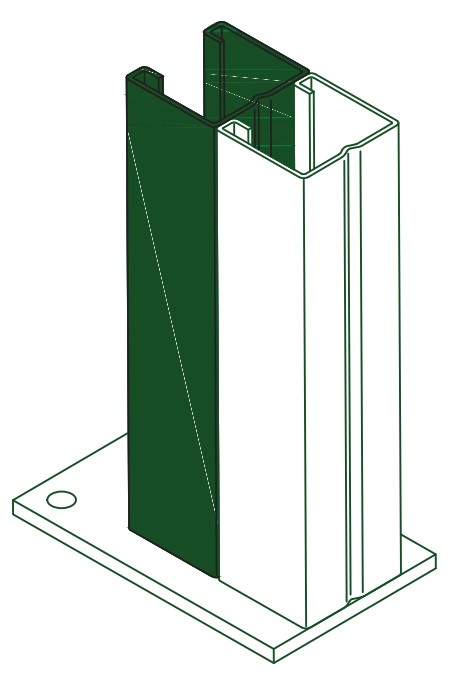

Options (Frame & Beam)
Must be specified at the time of manufacturing

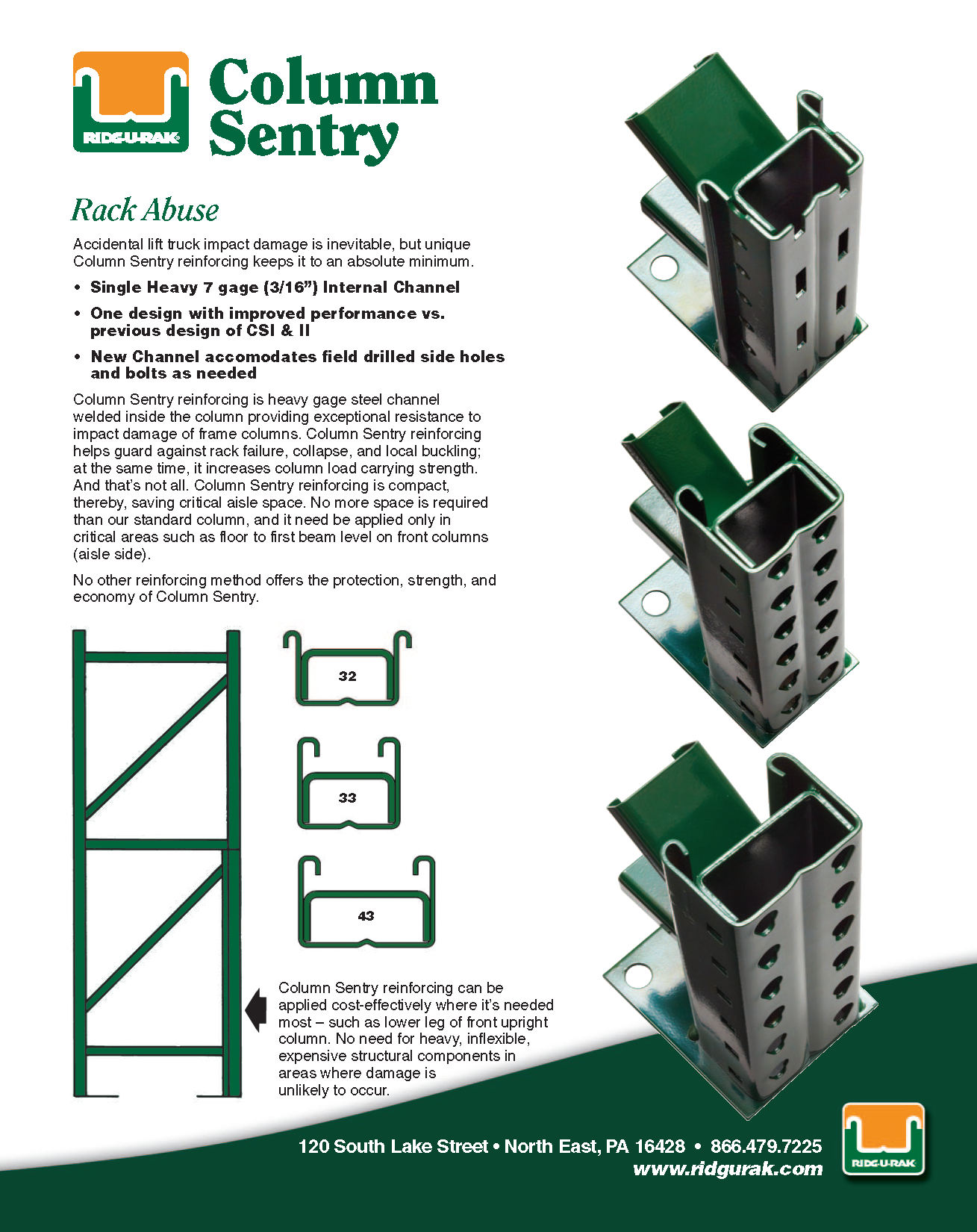

Accessories

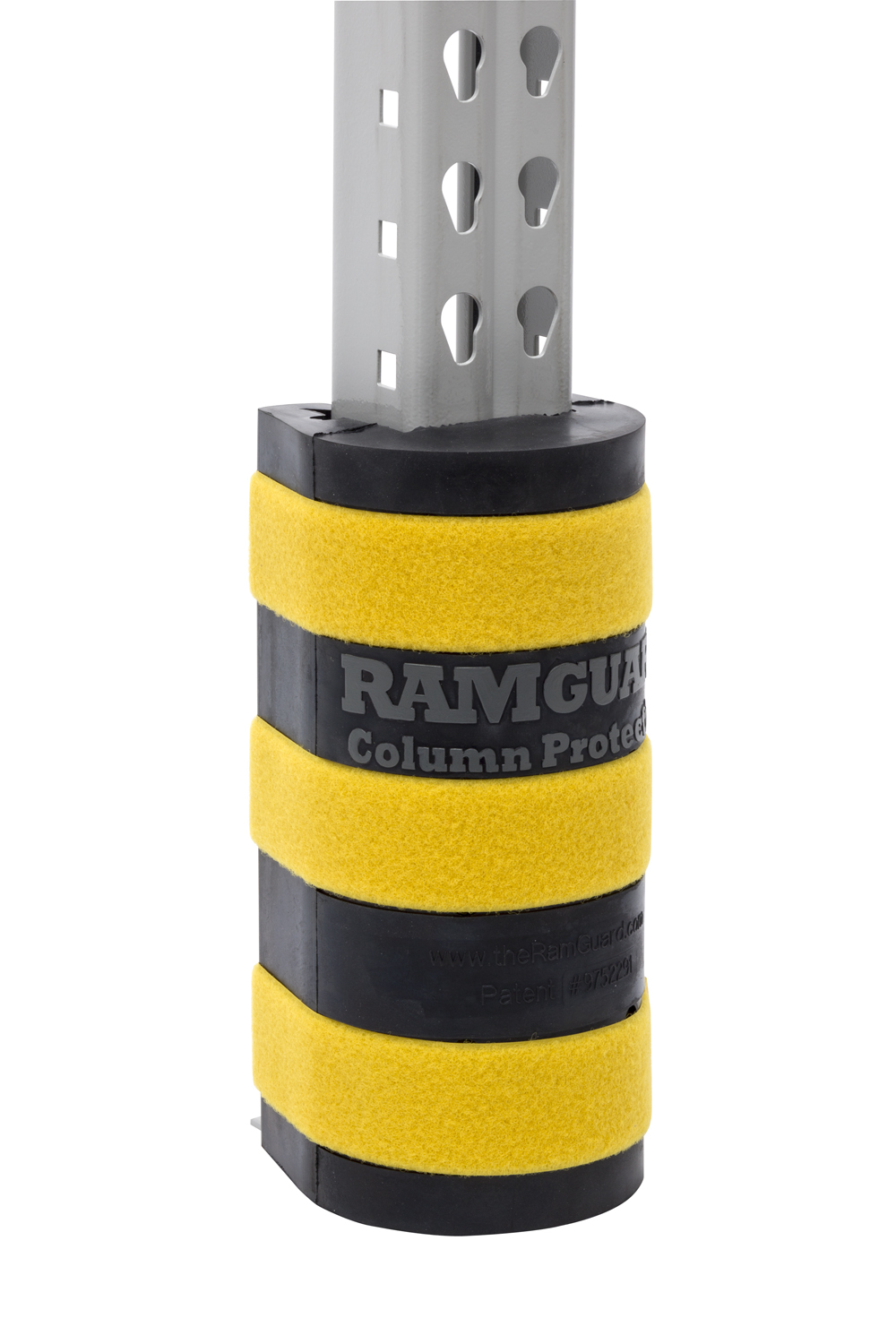

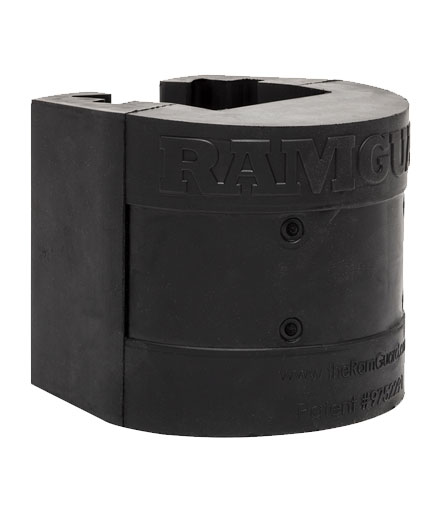

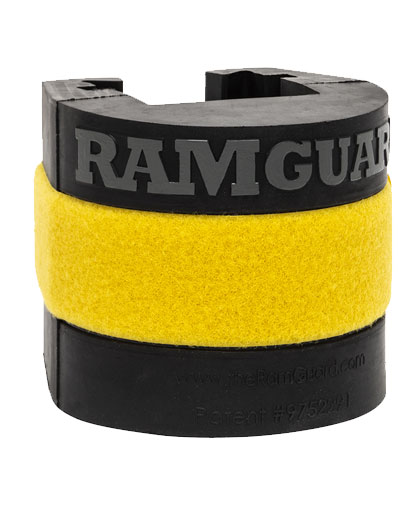

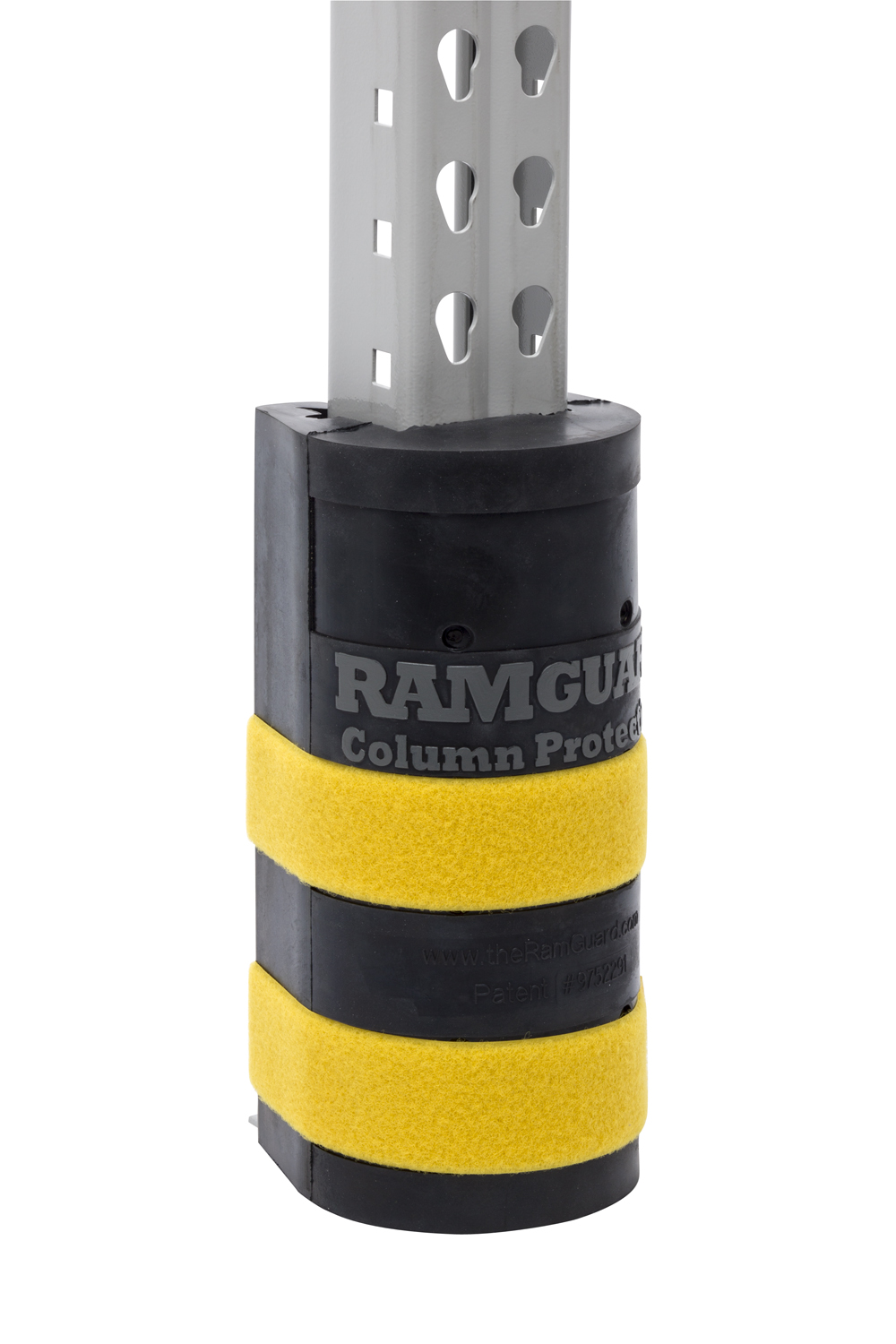

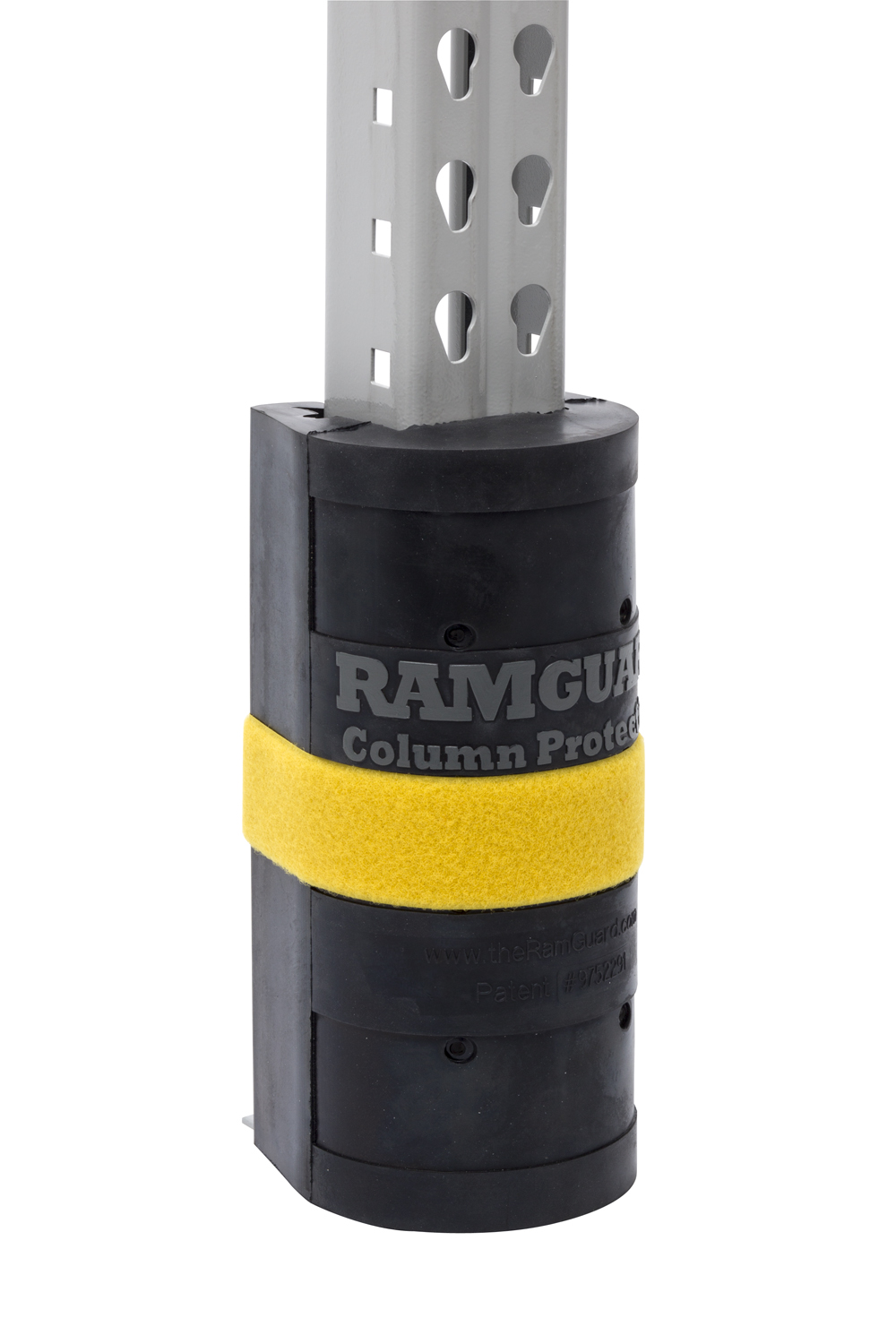

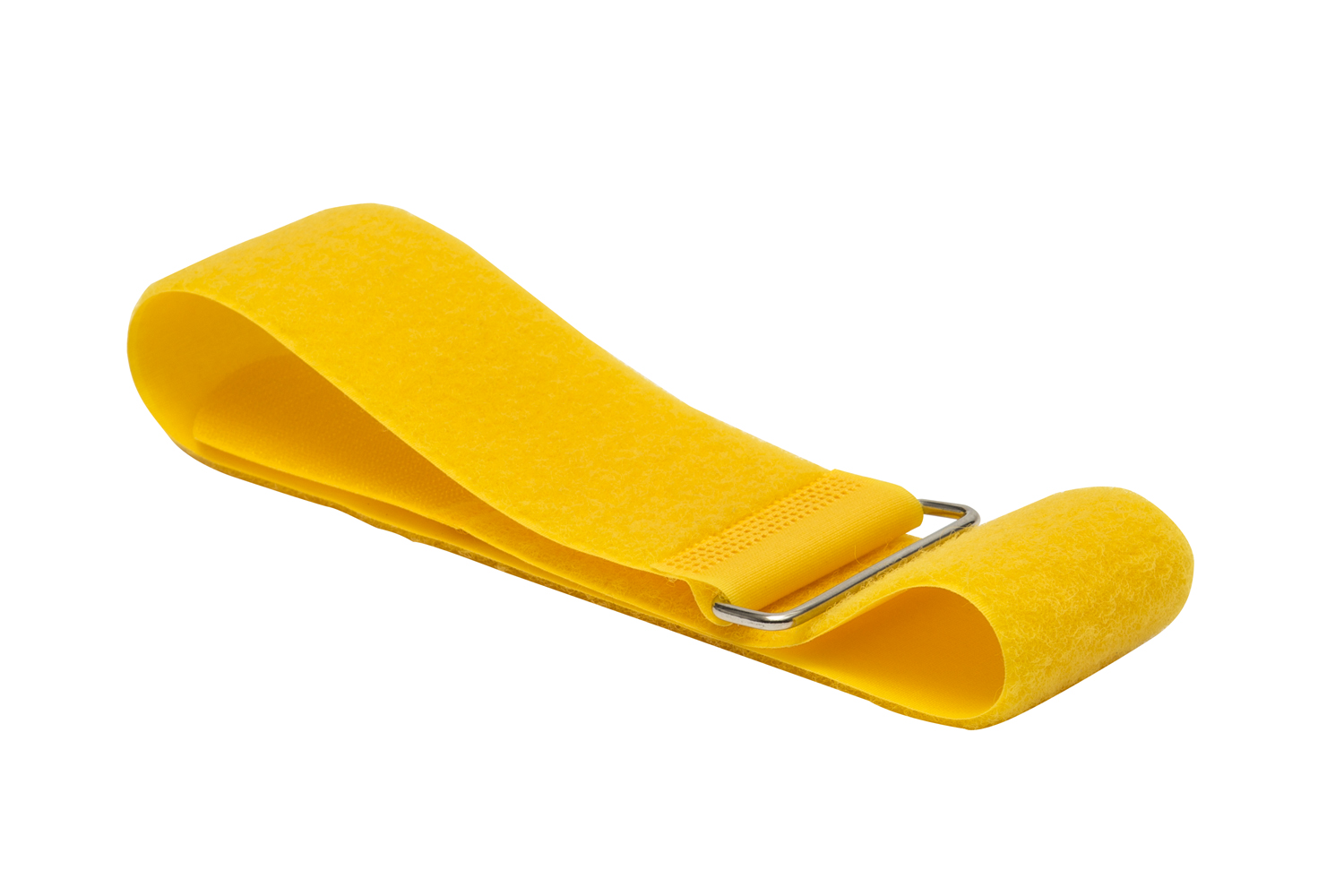

RamGuard
Do you need Rack now?
Find a location near you.

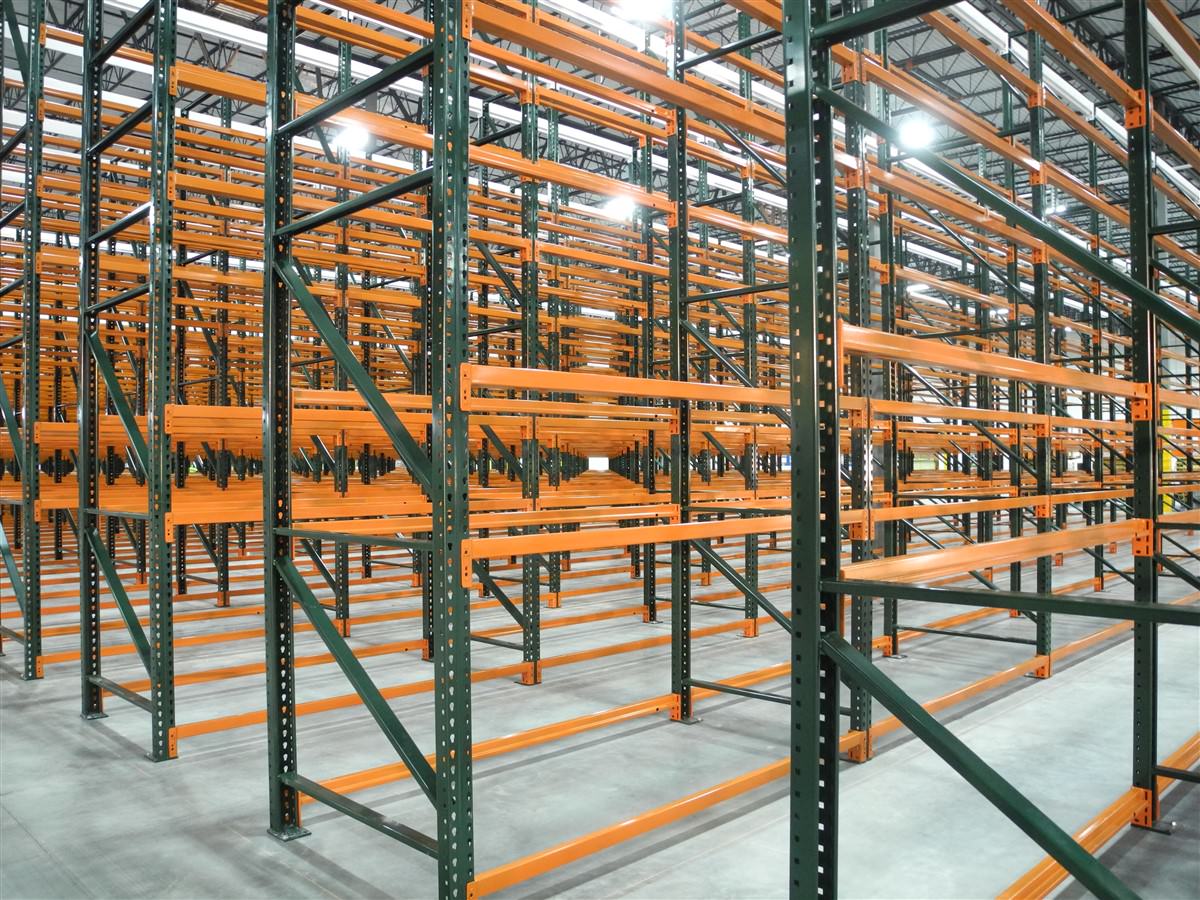

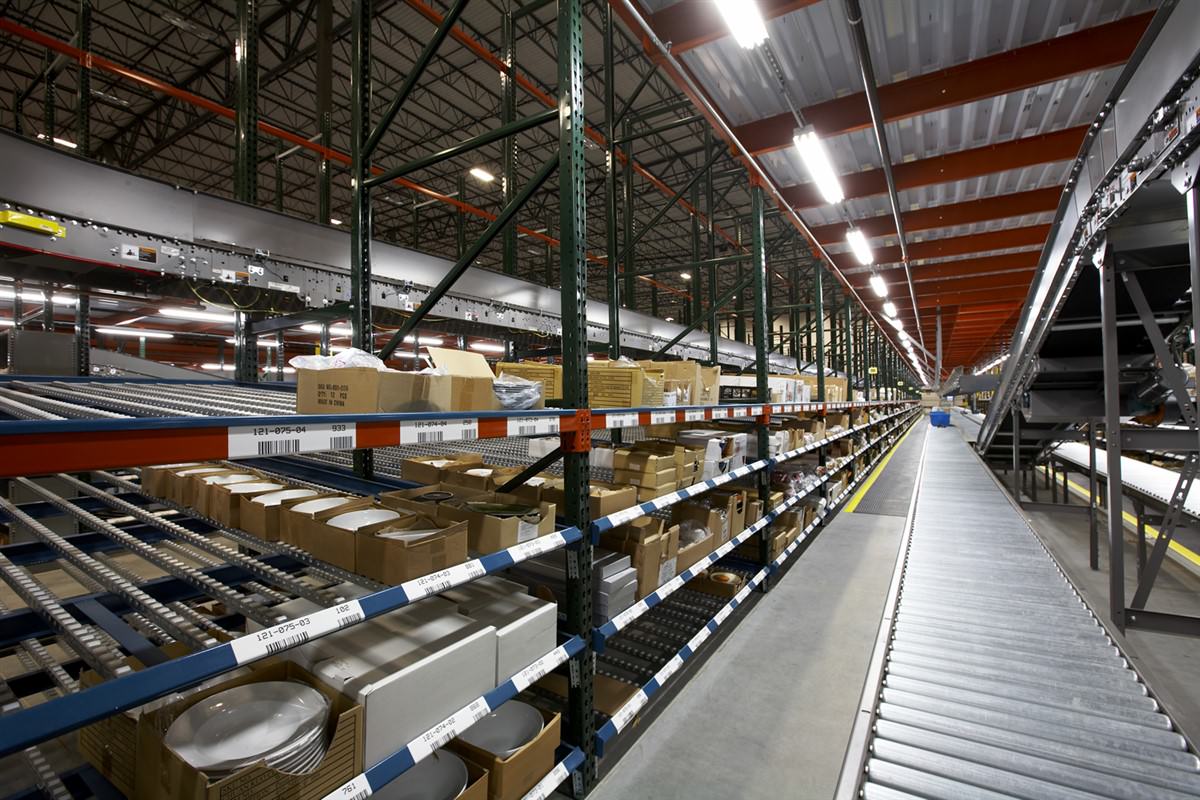

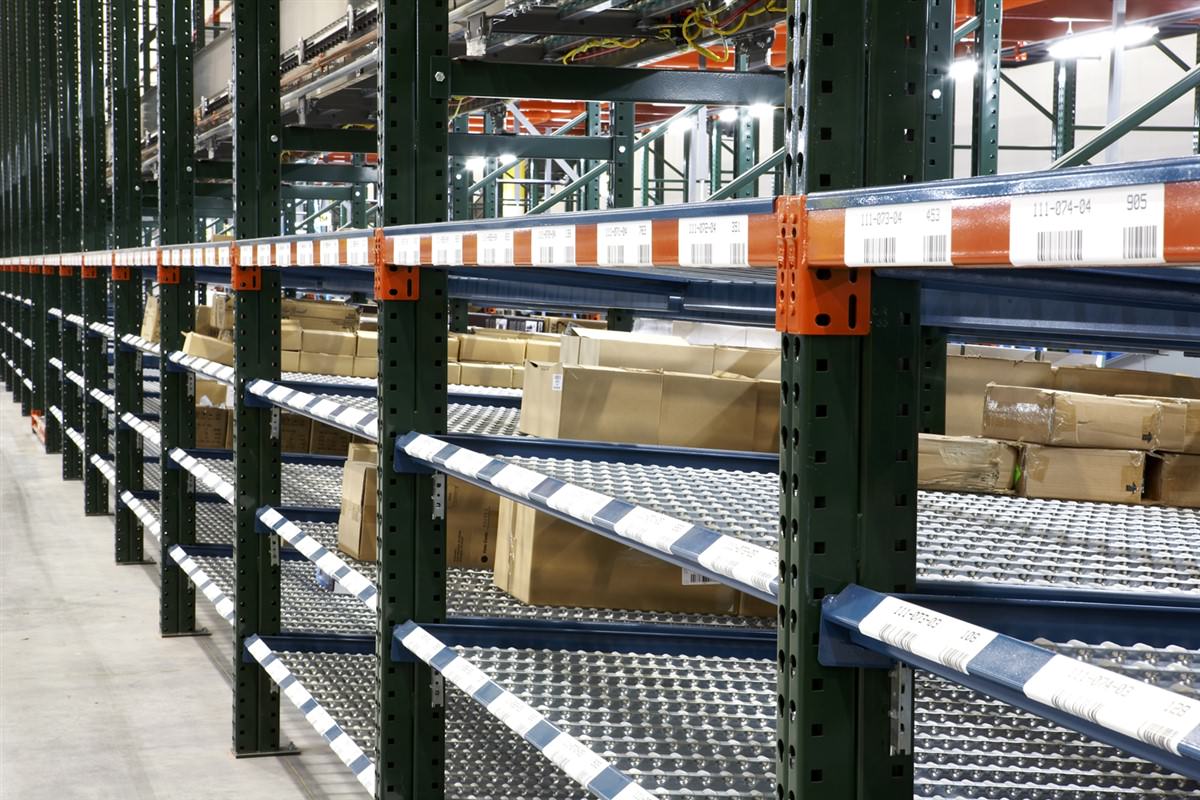

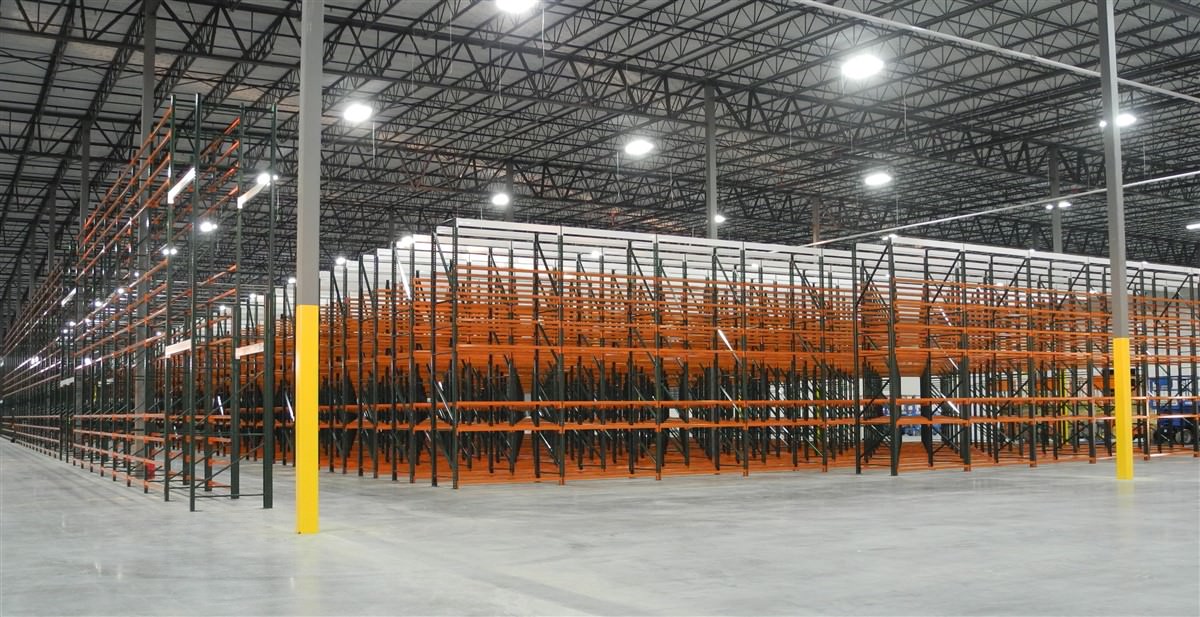

Selective Pallet Rack - Virtual Showroom

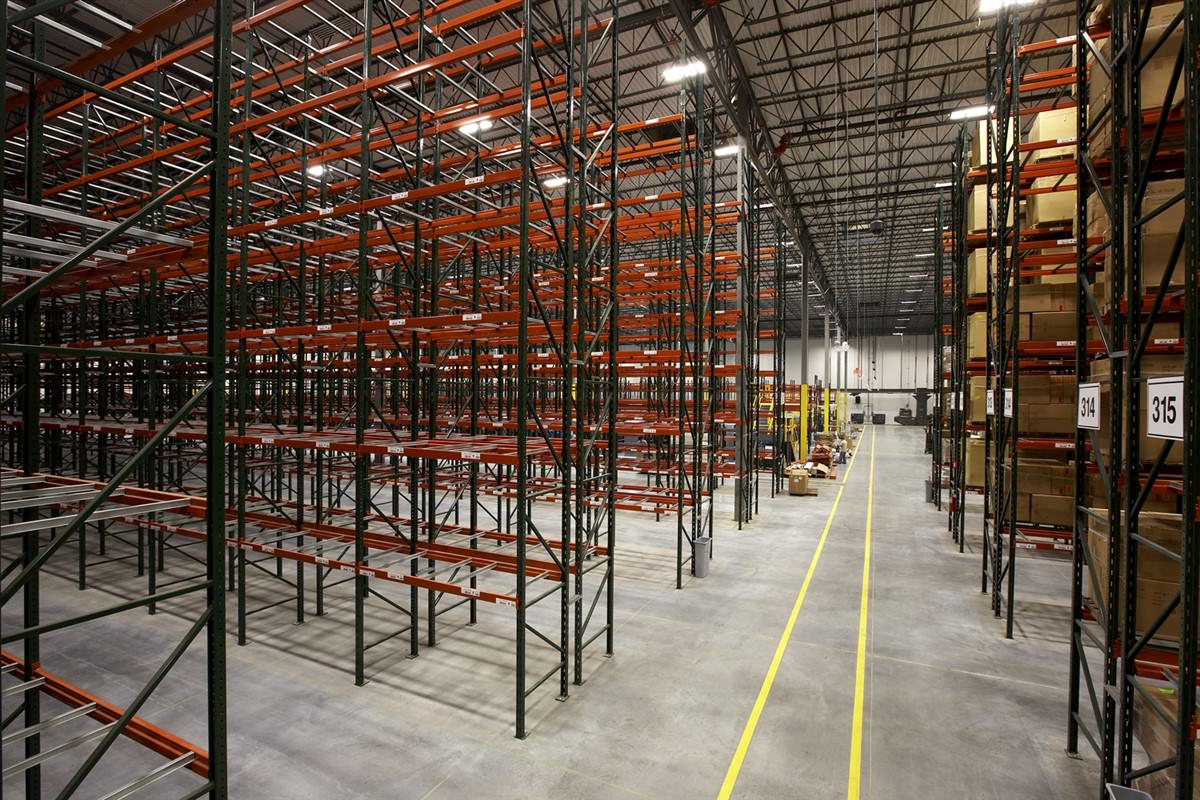

100% Selective Rack is the most common type of storage system for palletized products. Rack bays are positioned such that every pallet position is directly accessible. Selective pallet rack is commonly found in every type industrial facility, warehouse, distribution center, and big box stores. RIDG-U-RAK's selective pallet rack systems consist of fully welded uprights, roll formed beams, row spacers, pallet supports, and various other accessories.
